6241.3 Crank height adjustment system
Mini basins are made of a durable and antimicrobial cast marble. Due to its compact size, the basin is most suitable for small bathrooms. The Mini basin has fixed rails in front to support standing and ease approach. The angle of the front rim ensures that splashes stay inside the basin. Rails are available in different accent colours, to promote better spatial recognition. Colour options for rails: white (RAL 9016), grey (RAL 7037) and red (RAL 3003).
Wall brackets and fixed water trap are included with the basin. Mounting hardware sold separately. Manual height adjustments are available for the model.
Right- and left-handed basins are available, classified by the side of the tapered tail. The recommended mounting height is 800 mm.

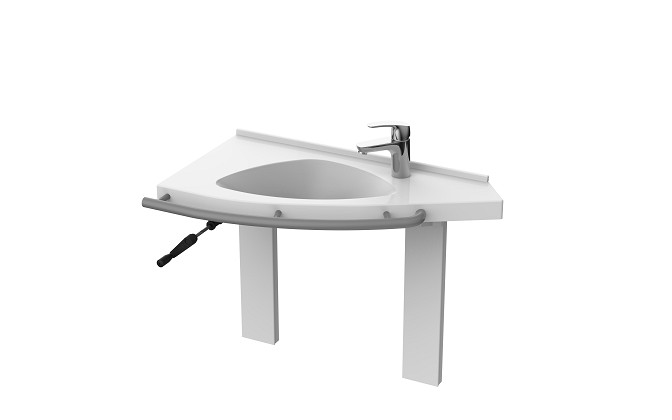

Crank height adjustment system for Mini basin. Allows for smooth and easy customization of the basin height via a removable hand crank. Height adjustment range is 200 mm. The recommended operating height of the basin is 700-900 mm. The unit is designed in accordance with the requirements of SFS-EN 14688: 2015. All white metal parts are painted with antimicrobial paint.
To get a functional unit you need:
- a basin
- mounting hardware, product number: 6208-Z (6 screws in a bag), order 2 bags
- accordion pipe for water trap: product number: 992600
For wall drainage you need also:
- wall installation part for the water-trap 90°, product number: 6223
Product details
- Color: black
